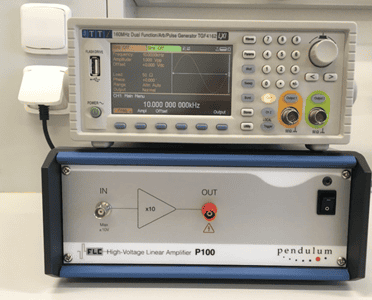

Arbitrary function generator with PENP100 amplifier

Arbitrary function generator TGF4162 is a device suitable for specific applications for measurements in electronic circuits, when it is necessary to use a generated signal with predefined parameters. The generator works with arbitrage, impulse, rectangular, sine, sin(x)/x, triangular waveforms. The maximum waveform frequency is 160MHz. Waveform frequency range 1µHz...5MHz (ramp waveform), 1µHz...80MHz (arbitrary waveform), 1µHz...100MHz (pulse waveform), 1µHz...100MHz (rectangular waveform), 1µHz...160MHz (sine progress). Supported modulation types AM, BPSK, FM, FSK, PM, PWM.The Pendulum Instruments P100 high-voltage, high-current linear amplifier has a fixed tenfold gain and is capable of ±50V bipolar high-voltage output. Any signal source with an amplitude of up to ±10V can be used as an input device. The maximum capacitive load is factory-set to 30V/µs, which provides a load limit of 200 nF. The continuous output current limit is 2 A, where the output power limit is approx. 128 W.
